MSTECH Europe
Classic-DTMML-250

"Dual track multi Magazine (mm) loader, Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 330x250; PCB Min. (mm): 50x50; Magazine (mm): 355x320x560

Application:

This system is designed to load the PCBs into the SMT line, with the capability to handle the dual lane transportation functions, it can be selected by the customer for the different working mode.

The machine is with a special pusher design, and allowed a very impact dimensions and helped the customer to save the line length.


1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
3.Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.

Features

• Efficient management of Good & No good boards from upstream system

• Dual lane high speed unloader function are selectable in the software

• Multi magazine capability to handle total 6 magazines (Optional)

• Panasonic connect PLC program control

• Selectable pitch settings from 10mm to 80mm;

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine from the rear of magazine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform.

MSTECH Europe
Classic-DTMML-330

"Dual track multi Magazine (mm) loader; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 440x330; PCB Min. (mm): 50x50; Magazine (mm): 460x400x563
Application:

This system is designed to load the PCBs into the SMT line, with the capability to handle the dual lane transportation functions, it can be selected by the customer for the different working mode.

The machine is with a special pusher design, and allowed a very impact dimensions and helped the customer to save the line length.



1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
3.Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.
Features

• Efficient management of Good & No good boards from upstream system

• Dual lane high speed unloader function are selectable in the software

• Multi magazine capability to handle total 6 magazines (Optional)

• Panasonic connect PLC program control

• Selectable pitch settings from 10mm to 80mm;

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine from the rear of magazine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform."

MSTECH Europe
Classic-DTMML-390

Dual track multi Magazine (mm) loader; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 530x390; PCB Min. (mm): 50x50; Magazine (mm): 535x460x570
Application:

This system is designed to load the PCBs into the SMT line, with the capability to handle the dual lane transportation functions, it can be selected by the customer for the different working mode.

The machine is with a special pusher design, and allowed a very impact dimensions and helped the customer to save the line length.



1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
3.Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.

Features

• Efficient management of Good & No good boards from upstream system

• Dual lane high speed unloader function are selectable in the software

• Multi magazine capability to handle total 6 magazines (Optional)

• Panasonic connect PLC program control

• Selectable pitch settings from 10mm to 80mm;

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine from the rear of magazine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform."

MSTECH Europe
Classic-DTMML-460

Dual track multi Magazine (mm) loader; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 535x460; PCB
Min. (mm): 50x50; Magazine (mm): 535x530x570

Application:

This system is designed to load the PCBs into the SMT line, with the capability to handle the dual lane transportation functions, it can be selected by the customer for the different working mode.

The machine is with a special pusher design, and allowed a very impact dimensions and helped the customer to save the line length.


1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
3.Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.

Features

• Efficient management of Good & No good boards from upstream system

• Dual lane high speed unloader function are selectable in the software

• Multi magazine capability to handle total 6 magazines (Optional)

• Panasonic connect PLC program control

• Selectable pitch settings from 10mm to 80mm;

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine from the rear of magazine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform.

MSTECH Europe
Classic-DTMML-Flex

"All size Magazine (mm) version; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): All sizes; PCB Min. (mm): 50x50; Machine Size (mm): Motorized conveyor width adjustment; Magazine (mm): 355x320x563 / 460x400x563 / 535x460x570 / 535x530x570

Application:

This system is designed to load the PCBs into the SMT line, with the capability to handle the dual lane transportation functions, it can be selected by the customer for the different working mode.

The machine is with a special pusher design, and allowed a very impact dimensions and helped the customer to save the line length.



1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
3.Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.
Features

• Efficient management of Good & No good boards from upstream system

• Dual lane high speed unloader function are selectable in the software

• Multi magazine capability to handle total 6 magazines (Optional)

• Panasonic connect PLC program control

• Selectable pitch settings from 10mm to 80mm;

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine from the rear of magazine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform."

MSTECH Europe

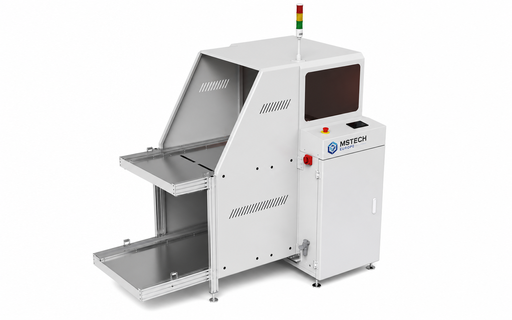

Classic-MML-250

"Multi Magazine (mm) loader; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 330x250; PCB Min. (mm): 50x50; Machine Size (mm): 1265x740x1650; Magazine (mm): 355x320x563

Application:

The multi magazine loader is used when a magazine of PCB boards needs to be loaded into a production line, this units is capable of handling total 4 units of magazine that can be easily be accessed from the front of the machine, it is used in high volume applications.

1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
3.Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.

Features

• Panasonic PLC program control

• magazine capacity: 4 magazine (Top 1+ down 2+ middle 1)

• Selectable pitch settings

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine from the rear of magazine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform.

• SMEMA compatible "

MSTECH Europe

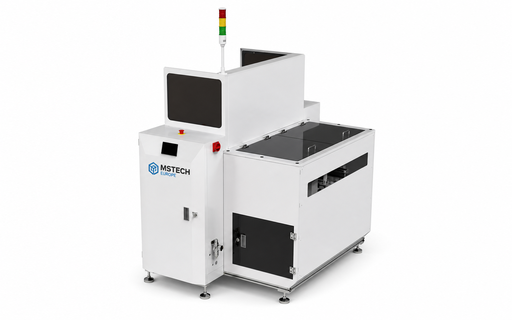

Classic-DTMMUL-330
Dual track multi Magazine (mm) unloader NG/OK ready; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 440x330; PCB Min. (mm): 50x50; Magazine (mm): 460x400x563

Application:

This system is available to separate the No-good boards and OK boards from upstream tester, and introduce the NG boards & OK boards into the corresponding magazines by special shuttle conveyor. This unit can also work as the dual lane unloader for high volume production.

Features

• Efficient management of Good & No good boards from upstream system
• Dual lane high speed unloader function are selectable in the software
• Multi magazine capability to handle total 6 magazines (Optional)
• Panasonic PLC program control
• Selectable pitch settings from 10mm to 80mm;
• Tower-light display for machines working status.
• Flexible platform to suit standard magazines
• Exchangeable magazine from the rear of magazine
• Stepper motorized type pusher to enhance working stability
• Pusher position adjustable to Centre for the boards
• Use the friendly touch screen panel
• Magazine infeed and outfeed are automatically driving by motor on the platform.

MSTECH Europe
Classic-DTMMUL-250
Dual track multi Magazine (mm) unloader NG/OK ready; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 330x250; PCB Min. (mm): 50x50; Magazine (mm): 355x320x563

Application:

This system is available to separate the No-good boards and OK boards from upstream tester, and introduce the NG boards & OK boards into the corresponding magazines by special shuttle conveyor. This unit can also work as the dual lane unloader for high volume production.

Features

• Efficient management of Good & No good boards from upstream system
• Dual lane high speed unloader function are selectable in the software
• Multi magazine capability to handle total 6 magazines (Optional)
• Panasonic PLC program control
• Selectable pitch settings from 10mm to 80mm;
• Tower-light display for machines working status.
• Flexible platform to suit standard magazines
• Exchangeable magazine from the rear of magazine
• Stepper motorized type pusher to enhance working stability
• Pusher position adjustable to Centre for the boards
• Use the friendly touch screen panel
• Magazine infeed and outfeed are automatically driving by motor on the platform.

MSTECH Europe
Classic-DTMMUL-390
Dual track multi Magazine (mm) unloader NG/OK ready; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 530x390; PCB Min. (mm): 50x50; Magazine (mm): 535x460x570

Application:

This system is available to separate the No-good boards and OK boards from upstream tester, and introduce the NG boards & OK boards into the corresponding magazines by special shuttle conveyor. This unit can also work as the dual lane unloader for high volume production.

Features

• Efficient management of Good & No good boards from upstream system
• Dual lane high speed unloader function are selectable in the software
• Multi magazine capability to handle total 6 magazines (Optional)
• Panasonic PLC program control
• Selectable pitch settings from 10mm to 80mm;
• Tower-light display for machines working status.
• Flexible platform to suit standard magazines
• Exchangeable magazine from the rear of magazine
• Stepper motorized type pusher to enhance working stability
• Pusher position adjustable to Centre for the boards
• Use the friendly touch screen panel
• Magazine infeed and outfeed are automatically driving by motor on the platform.

MSTECH Europe
Classic-DTMMUL-Flex

Dual track multi Magazine (mm) unloader NG/OK ready - All size Magazine (mm) version; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): All sizes; PCB Min. (mm): 50x50; Machine Size (mm): Motorized conveyor width adjustment; Magazine (mm): 355x320x563 / 460x400x563 / 535x460x570 / 535x530x570 (mm)

Application:

This system is available to separate the No-good boards and OK boards from upstream tester, and introduce the NG boards & OK boards into the corresponding magazines by special shuttle conveyor. This unit can also work as the dual lane unloader for high volume production.

Features

• Efficient management of Good & No good boards from upstream system
• Dual lane high speed unloader function are selectable in the software
• Multi magazine capability to handle total 6 magazines (Optional)
• Panasonic PLC program control
• Selectable pitch settings from 10mm to 80mm;
• Tower-light display for machines working status.
• Flexible platform to suit standard magazines
• Exchangeable magazine from the rear of magazine
• Stepper motorized type pusher to enhance working stability
• Pusher position adjustable to Centre for the boards
• Use the friendly touch screen panel
• Magazine infeed and outfeed are automatically driving by motor on the platform.

MSTECH Europe

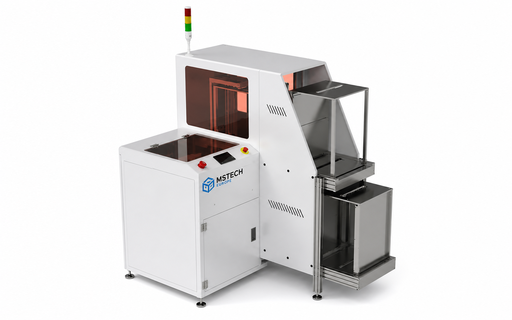

Classic-AMML-250

Multi Magazine (mm) loader, space save type; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 330x250; PCB Min. (mm): 50x50; Machine Size (mm): 1010x1470x1650; Magazine (mm): 355x320x563

Application:

The Magazine Loader is designed for loading of PCBs. The unit loads your production line automatically by pushing PCB’s out of a magazine onto the conveyor of the down-stream machine. Connect with SMT and AI productions line, safety design ensure not to break any PCB when it is pushed and thus reduce defect rate. With high accuracy, automatic counting, fault alram functions, it is required for a full range of automatic equipment.

This multi magazine loader is designed with "L type "to save the SMT production line length without impacting the production throughout capacity.



1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
3.Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.

Features

• Magazine capacity: Top 1+ Down 2, middle 1, total 4 magazines.

• Full CE regulations safety cover

• Selectable pitch 10mm up to 80mm

• Auto/Manual run modes

• Diameter 3.8mm edge Flat ESD belt

• Component clearance: top 50mm+ bottom 30mm

• Power: AC220V/110V, 50/60 HZ, 1 phase

• Air Pressure: 5kgf/cm2

• PCB Convey Direction: L-R (Or R-L)

• Front rail fixed (or rear rail fixed)

• Conveyor height:900+/-50mm (standard height for SMT application)

• For AI application, please specify the height requirements

MSTECH Europe
Classic-AMML-330

Multi Magazine (mm) loader, space save type; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 440x330; PCB Min. (mm): 50x50; Machine Size (mm): 1210x1700x1650; Magazine (mm): 460x400x563

Application:

The Magazine Loader is designed for loading of PCBs. The unit loads your production line automatically by pushing PCB’s out of a magazine onto the conveyor of the down-stream machine. Connect with SMT and AI productions line, safety design ensure not to break any PCB when it is pushed and thus reduce defect rate. With high accuracy, automatic counting, fault alram functions, it is required for a full range of automatic equipment.

This multi magazine loader is designed with ""L type ""to save the SMT production line length without impacting the production throughout capacity.



1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
3.Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.

Features

• Magazine capacity: Top 1+ Down 2, middle 1, total 4 magazines.

• Full CE regulations safety cover

• Selectable pitch 10mm up to 80mm

• Auto/Manual run modes

• Diameter 3.8mm edge Flat ESD belt

• Component clearance: top 50mm+ bottom 30mm

• Power: AC220V/110V, 50/60 HZ, 1 phase

• Air Pressure: 5kgf/cm2

• PCB Convey Direction: L-R (Or R-L)

• Front rail fixed (or rear rail fixed)

• Conveyor height:900+/-50mm (standard height for SMT application)

• For AI application, please specify the height requirements

MSTECH Europe
Classic-AMML-390

Multi Magazine (mm) loader, space save type; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 530x390; PCB Min. (mm): 50x50; Machine Size (mm): 1390x1700x1650; Magazine (mm): 535x460x570

Application:

The Magazine Loader is designed for loading of PCBs. The unit loads your production line automatically by pushing PCB’s out of a magazine onto the conveyor of the down-stream machine. Connect with SMT and AI productions line, safety design ensure not to break any PCB when it is pushed and thus reduce defect rate. With high accuracy, automatic counting, fault alram functions, it is required for a full range of automatic equipment.

This multi magazine loader is designed with ""L type ""to save the SMT production line length without impacting the production throughout capacity.



1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
3.Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.

Features

• Magazine capacity: Top 1+ Down 2, middle 1, total 4 magazines.

• Full CE regulations safety cover

• Selectable pitch 10mm up to 80mm

• Auto/Manual run modes

• Diameter 3.8mm edge Flat ESD belt

• Component clearance: top 50mm+ bottom 30mm

• Power: AC220V/110V, 50/60 HZ, 1 phase

• Air Pressure: 5kgf/cm2

• PCB Convey Direction: L-R (Or R-L)

• Front rail fixed (or rear rail fixed)

• Conveyor height:900+/-50mm (standard height for SMT application)

• For AI application, please specify the height requirements
