MSTECH Europe
Classic-DTMML-250

"Dual track multi Magazine (mm) loader, Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 330x250; PCB Min. (mm): 50x50; Magazine (mm): 355x320x560

Application:

This system is designed to load the PCBs into the SMT line, with the capability to handle the dual lane transportation functions, it can be selected by the customer for the different working mode.

The machine is with a special pusher design, and allowed a very impact dimensions and helped the customer to save the line length.


1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
3.Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.

Features

• Efficient management of Good & No good boards from upstream system

• Dual lane high speed unloader function are selectable in the software

• Multi magazine capability to handle total 6 magazines (Optional)

• Panasonic connect PLC program control

• Selectable pitch settings from 10mm to 80mm;

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine from the rear of magazine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform.

MSTECH Europe
Classic-DTMML-330

"Dual track multi Magazine (mm) loader; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 440x330; PCB Min. (mm): 50x50; Magazine (mm): 460x400x563
Application:

This system is designed to load the PCBs into the SMT line, with the capability to handle the dual lane transportation functions, it can be selected by the customer for the different working mode.

The machine is with a special pusher design, and allowed a very impact dimensions and helped the customer to save the line length.



1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
3.Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.
Features

• Efficient management of Good & No good boards from upstream system

• Dual lane high speed unloader function are selectable in the software

• Multi magazine capability to handle total 6 magazines (Optional)

• Panasonic connect PLC program control

• Selectable pitch settings from 10mm to 80mm;

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine from the rear of magazine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform."

MSTECH Europe
Classic-DTMML-390

Dual track multi Magazine (mm) loader; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 530x390; PCB Min. (mm): 50x50; Magazine (mm): 535x460x570
Application:

This system is designed to load the PCBs into the SMT line, with the capability to handle the dual lane transportation functions, it can be selected by the customer for the different working mode.

The machine is with a special pusher design, and allowed a very impact dimensions and helped the customer to save the line length.



1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
3.Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.

Features

• Efficient management of Good & No good boards from upstream system

• Dual lane high speed unloader function are selectable in the software

• Multi magazine capability to handle total 6 magazines (Optional)

• Panasonic connect PLC program control

• Selectable pitch settings from 10mm to 80mm;

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine from the rear of magazine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform."

MSTECH Europe

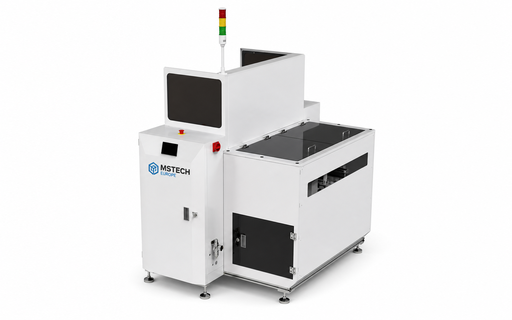

Classic-DTMML-460

Dual track multi Magazine (mm) loader; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 535x460; PCB
Min. (mm): 50x50; Magazine (mm): 535x530x570

Application:

This system is designed to load the PCBs into the SMT line, with the capability to handle the dual lane transportation functions, it can be selected by the customer for the different working mode.

The machine is with a special pusher design, and allowed a very impact dimensions and helped the customer to save the line length.


1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
3.Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.

Features

• Efficient management of Good & No good boards from upstream system

• Dual lane high speed unloader function are selectable in the software

• Multi magazine capability to handle total 6 magazines (Optional)

• Panasonic connect PLC program control

• Selectable pitch settings from 10mm to 80mm;

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine from the rear of magazine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform.

MSTECH Europe
Classic-DTMML-Flex

"All size Magazine (mm) version; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): All sizes; PCB Min. (mm): 50x50; Machine Size (mm): Motorized conveyor width adjustment; Magazine (mm): 355x320x563 / 460x400x563 / 535x460x570 / 535x530x570

Application:

This system is designed to load the PCBs into the SMT line, with the capability to handle the dual lane transportation functions, it can be selected by the customer for the different working mode.

The machine is with a special pusher design, and allowed a very impact dimensions and helped the customer to save the line length.



1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
3.Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.
Features

• Efficient management of Good & No good boards from upstream system

• Dual lane high speed unloader function are selectable in the software

• Multi magazine capability to handle total 6 magazines (Optional)

• Panasonic connect PLC program control

• Selectable pitch settings from 10mm to 80mm;

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine from the rear of magazine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform."

MSTECH Europe
Classic-MML-250

"Multi Magazine (mm) loader; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 330x250; PCB Min. (mm): 50x50; Machine Size (mm): 1265x740x1650; Magazine (mm): 355x320x563

Application:

The multi magazine loader is used when a magazine of PCB boards needs to be loaded into a production line, this units is capable of handling total 4 units of magazine that can be easily be accessed from the front of the machine, it is used in high volume applications.

1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
3.Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.

Features

• Panasonic PLC program control

• magazine capacity: 4 magazine (Top 1+ down 2+ middle 1)

• Selectable pitch settings

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine from the rear of magazine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform.

• SMEMA compatible "

MSTECH Europe
Classic-DTMMUL-330
Dual track multi Magazine (mm) unloader NG/OK ready; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 440x330; PCB Min. (mm): 50x50; Magazine (mm): 460x400x563

Application:

This system is available to separate the No-good boards and OK boards from upstream tester, and introduce the NG boards & OK boards into the corresponding magazines by special shuttle conveyor. This unit can also work as the dual lane unloader for high volume production.

Features

• Efficient management of Good & No good boards from upstream system
• Dual lane high speed unloader function are selectable in the software
• Multi magazine capability to handle total 6 magazines (Optional)
• Panasonic PLC program control
• Selectable pitch settings from 10mm to 80mm;
• Tower-light display for machines working status.
• Flexible platform to suit standard magazines
• Exchangeable magazine from the rear of magazine
• Stepper motorized type pusher to enhance working stability
• Pusher position adjustable to Centre for the boards
• Use the friendly touch screen panel
• Magazine infeed and outfeed are automatically driving by motor on the platform.

MSTECH Europe
Classic-DTMMUL-250
Dual track multi Magazine (mm) unloader NG/OK ready; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 330x250; PCB Min. (mm): 50x50; Magazine (mm): 355x320x563

Application:

This system is available to separate the No-good boards and OK boards from upstream tester, and introduce the NG boards & OK boards into the corresponding magazines by special shuttle conveyor. This unit can also work as the dual lane unloader for high volume production.

Features

• Efficient management of Good & No good boards from upstream system
• Dual lane high speed unloader function are selectable in the software
• Multi magazine capability to handle total 6 magazines (Optional)
• Panasonic PLC program control
• Selectable pitch settings from 10mm to 80mm;
• Tower-light display for machines working status.
• Flexible platform to suit standard magazines
• Exchangeable magazine from the rear of magazine
• Stepper motorized type pusher to enhance working stability
• Pusher position adjustable to Centre for the boards
• Use the friendly touch screen panel
• Magazine infeed and outfeed are automatically driving by motor on the platform.

MSTECH Europe
Classic-DTMMUL-390
Dual track multi Magazine (mm) unloader NG/OK ready; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 530x390; PCB Min. (mm): 50x50; Magazine (mm): 535x460x570

Application:

This system is available to separate the No-good boards and OK boards from upstream tester, and introduce the NG boards & OK boards into the corresponding magazines by special shuttle conveyor. This unit can also work as the dual lane unloader for high volume production.

Features

• Efficient management of Good & No good boards from upstream system
• Dual lane high speed unloader function are selectable in the software
• Multi magazine capability to handle total 6 magazines (Optional)
• Panasonic PLC program control
• Selectable pitch settings from 10mm to 80mm;
• Tower-light display for machines working status.
• Flexible platform to suit standard magazines
• Exchangeable magazine from the rear of magazine
• Stepper motorized type pusher to enhance working stability
• Pusher position adjustable to Centre for the boards
• Use the friendly touch screen panel
• Magazine infeed and outfeed are automatically driving by motor on the platform.

MSTECH Europe
Classic-DTMMUL-460
Dual track multi Magazine (mm) unloader NG/OK ready; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 535x460; PCB Min. (mm): 50x50; Magazine (mm): 535x530x570

Application:

This system is available to separate the No-good boards and OK boards from upstream tester, and introduce the NG boards & OK boards into the corresponding magazines by special shuttle conveyor. This unit can also work as the dual lane unloader for high volume production.

Features

• Efficient management of Good & No good boards from upstream system
• Dual lane high speed unloader function are selectable in the software
• Multi magazine capability to handle total 6 magazines (Optional)
• Panasonic PLC program control
• Selectable pitch settings from 10mm to 80mm;
• Tower-light display for machines working status.
• Flexible platform to suit standard magazines
• Exchangeable magazine from the rear of magazine
• Stepper motorized type pusher to enhance working stability
• Pusher position adjustable to Centre for the boards
• Use the friendly touch screen panel
• Magazine infeed and outfeed are automatically driving by motor on the platform.

MSTECH Europe
Classic-DTMMUL-Flex

Dual track multi Magazine (mm) unloader NG/OK ready - All size Magazine (mm) version; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): All sizes; PCB Min. (mm): 50x50; Machine Size (mm): Motorized conveyor width adjustment; Magazine (mm): 355x320x563 / 460x400x563 / 535x460x570 / 535x530x570 (mm)

Application:

This system is available to separate the No-good boards and OK boards from upstream tester, and introduce the NG boards & OK boards into the corresponding magazines by special shuttle conveyor. This unit can also work as the dual lane unloader for high volume production.

Features

• Efficient management of Good & No good boards from upstream system
• Dual lane high speed unloader function are selectable in the software
• Multi magazine capability to handle total 6 magazines (Optional)
• Panasonic PLC program control
• Selectable pitch settings from 10mm to 80mm;
• Tower-light display for machines working status.
• Flexible platform to suit standard magazines
• Exchangeable magazine from the rear of magazine
• Stepper motorized type pusher to enhance working stability
• Pusher position adjustable to Centre for the boards
• Use the friendly touch screen panel
• Magazine infeed and outfeed are automatically driving by motor on the platform.

MSTECH Europe
Classic-MML-390
Multi Magazine (mm) loader; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 530x390; PCB Min. (mm): 50x50; Machine Size (mm): 1800x950x1650; Magazine (mm): 535x460x570

Application:

The multi magazine loader is used when a magazine of PCB boards needs to be loaded into a production line, this units is capable of handling total 4 units of magazine that can be easily be accessed from the front of the machine, it is used in high volume applications.

1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
3.Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.

Features

• Panasonic PLC program control
• magazine capacity: 4 magazine (Top 1+ down 2+ middle 1)
• Selectable pitch settings
• Tower-light display for machines working status.
• Flexible platform to suit standard magazines
• Exchangeable magazine from the rear of magazine
• Stepper motorized type pusher to enhance working stability
• Pusher position adjustable to Centre for the boards
• Use the friendly touch screen panel
• Magazine infeed and outfeed are automatically driving by motor on the platform.
• SMEMA compatible

MSTECH Europe
Classic-MML-460
Multi Magazine (mm) loader; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 535x460; PCB Min. (mm): 50x50; Machine Size (mm): 1800x1020x1650; Magazine (mm): 535x530x570

Application:

The multi magazine loader is used when a magazine of PCB boards needs to be loaded into a production line, this units is capable of handling total 4 units of magazine that can be easily be accessed from the front of the machine, it is used in high volume applications.

1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
3.Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.

Features

• Panasonic PLC program control

• magazine capacity: 4 magazine (Top 1+ down 2+ middle 1)

• Selectable pitch settings

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine from the rear of magazine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform.

• SMEMA compatible

MSTECH
Classic-MML-Flex
Available for 355x320x563 / 460x400x563 / 535x460x570 / 535x530x570 (mm) in one machine; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): All sizes; PCB Min. (mm): 50x50; Magazine (mm): 355x320x563 / 460x400x563 / 535x460x570 / 535x530x570 (mm)

Application:

The multi magazine loader is used when a magazine of PCB boards needs to be loaded into a production line, this units is capable of handling total 4 units of magazine that can be easily be accessed from the front of the machine, it is used in high volume applications.

1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
3.Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.

Features

• Panasonic PLC program control

• magazine capacity: 4 magazine (Top 1+ down 2+ middle 1)

• Selectable pitch settings

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine from the rear of magazine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform.

• SMEMA compatible

MSTECH Europe
Classic-MMUL-250
Multi Magazine (mm) unloader; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 330x250; PCB Min. (mm): 50x50; Machine Size (mm): 1265x740x1650; Magazine (mm): 355x320x563

Application:

The Automatic Unloader is designed for unloading of PCBs, an arriving PCB is taken up by the attached conveyor and then pushed into the magazine by a specially designed pusher. The magazine indexes to the next position and is ready for the following unloading cycle. Connect with SMT and AI production line, safety design ensures not to break any PCB when it is pushed and thus reduce defect rate. Agility operation with high accuracy, automatic counting, fault alarm functions, it is required for a full range of automatic equipment.

1.Used in SMT line end, collecting the boards into the magazines from upstream machine.
2.Standard magazine handling capacity : 4 PCS of magazines ( Optional: 5 PCS)

Features

Magazine capacity: Top 1+ Middle 1+Down 2, total 4 magazines. (Optional: 5 magazines)

Full CE regulations safety cover

Selectable pitch 10mm up to 80mm

Auto/Manual run modes

Diameter 3.8mm edge Flat ESD belt

Component clearance: top 50mm, bottom 30mm

Power: AC220V/110V, 50/60 HZ, 1 phase

Air Pressure: 5kgf/cm2

PCB Convey Direction: L-R ( Or R-L)

Front rail fixed ( or rear rail fixed)

Conveyor height:900+/-50mm (Standard height for SMT application)

For AI application, please specify the height requirements

MSTECH Europe
MTU-350

The MTU-350 is a high-performance wave soldering machine designed for precise, stable, and efficient PCB assembly. Featuring advanced heating technology, dual-wave soldering, and intelligent control systems, it ensures consistent, high-quality solder joints while optimizing production throughput.
Applications
Ideal for through-hole and mixed-technology PCB assembly in:

Consumer electronics
Automotive electronics
Industrial electronics manufacturing
EMS and high-volume production lines

Key Features

Dual wave system: laminar + dancer for optimal solder quality
High-precision temperature control (±1°C) for stable processes
4-zone preheating system (1800 mm) with hot air convection
Supports PCB widths from 50 to 350 mm
PLC + PC control with automatic alarms and scheduling
Automatic flux spraying system with adjustable flow rate
Automatic finger cleaning system with recyclable solution
Energy-efficient operation with matrix heating (up to 95% efficiency)
SMEMA interface for easy line integration

MSTECH Europe
MTU-450

MTU-450 Wave Soldering Machine
The MTU-450 is a high-capacity wave soldering machine designed for wide PCB applications, delivering precise, stable, and efficient soldering performance. With advanced dual-wave technology, intelligent control systems, and robust construction, it ensures consistent high-quality results for demanding production environments.
Applications
Ideal for large-format and high-density PCB assembly, including:

Consumer electronics
Automotive electronics
Industrial and power electronics
EMS and high-volume production lines

Key Features

Extended PCB handling up to 450 mm width
Dual wave system: laminar + dancer for superior solder quality
High-precision temperature control (±1°C)
4-zone preheating system (1800 mm) with hot air convection
PLC + PC control system with alarms, automation, and scheduling
Automatic flux spraying system with intelligent detection and adjustable flow
Advanced flux management with recycling and exhaust filtration system
Automatic finger cleaning system with recyclable alcohol solution
Energy-efficient matrix heating (up to 95%)
Robust, fully enclosed design for safety and ease of maintenance
SMEMA interface for seamless production line integration

MSTECH Europe,
MTU-500

The MTU-500 is a large-format, high-capacity wave soldering machine designed for demanding PCB production environments. Built for maximum throughput and precision, it combines advanced dual-wave technology, intelligent automation, and efficient thermal management to deliver excellent soldering quality on complex and wide PCBs.
Applications
Ideal for extra-wide and complex PCB assemblies, including:

Automotive and power electronics
Industrial equipment and control systems
Large consumer electronics boards
EMS high-volume production lines

Key Features

Extended PCB capacity up to 500 mm width for large-format boards
Dual wave system: laminar (first) + dancer (second) for optimal soldering results
High-precision temperature control (±1°C)
4-zone preheating system (1800 mm) with hot air convection
Advanced PLC + PC control system with intelligent automation and alarms
Automatic flux spraying system with detection and adjustable flow
Enhanced flux management system with recycling, air curtain, and filtration
Automatic finger cleaning system with recyclable alcohol solution
Energy-efficient matrix heating (up to 95%)
Robust enclosed structure for durability, safety, and easy maintenance
SMEMA interface for seamless integration into production lines

MSTECH Europe
MTU-610

MTU-610 Wave Soldering Machine
The MTU-610 is a large-format, high-capacity wave soldering system designed for extra-wide PCB production and demanding industrial applications. Combining dual-wave soldering, advanced automation, and highly efficient heating technology, it delivers exceptional solder quality, process stability, and productivity for complex assemblies.
Applications
Ideal for very large and complex PCB assemblies, including:

Automotive and power electronics
Industrial control systems and infrastructure
Large-format consumer electronics
EMS high-volume and heavy-duty production lines

Key Features

Extra-wide PCB capability up to 610 mm
Dual wave system: laminar (first) + dancer (second) for optimal soldering performance
High-precision temperature control (±1°C) ensures process stability
4-zone preheating system (1800 mm) with hot air convection
Advanced PLC + PC control system with automation, alarms, and scheduling
Automatic flux spraying system with intelligent PCB detection and adjustable flow
Comprehensive flux management system (recycling, filtration, air curtain)
Automatic finger cleaning system with recyclable alcohol solution
Energy-efficient matrix heating (up to 95%)
Robust enclosed machine design for safety, durability, and easy maintenance
SMEMA compatibility for seamless line integration

MSTECH Europe
Classic-AMML-250

Multi Magazine (mm) loader, space save type; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 330x250; PCB Min. (mm): 50x50; Machine Size (mm): 1010x1470x1650; Magazine (mm): 355x320x563

Application:

The Magazine Loader is designed for loading of PCBs. The unit loads your production line automatically by pushing PCB’s out of a magazine onto the conveyor of the down-stream machine. Connect with SMT and AI productions line, safety design ensure not to break any PCB when it is pushed and thus reduce defect rate. With high accuracy, automatic counting, fault alram functions, it is required for a full range of automatic equipment.

This multi magazine loader is designed with "L type "to save the SMT production line length without impacting the production throughout capacity.



1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
3.Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.

Features

• Magazine capacity: Top 1+ Down 2, middle 1, total 4 magazines.

• Full CE regulations safety cover

• Selectable pitch 10mm up to 80mm

• Auto/Manual run modes

• Diameter 3.8mm edge Flat ESD belt

• Component clearance: top 50mm+ bottom 30mm

• Power: AC220V/110V, 50/60 HZ, 1 phase

• Air Pressure: 5kgf/cm2

• PCB Convey Direction: L-R (Or R-L)

• Front rail fixed (or rear rail fixed)

• Conveyor height:900+/-50mm (standard height for SMT application)

• For AI application, please specify the height requirements
