MSTECH Europe

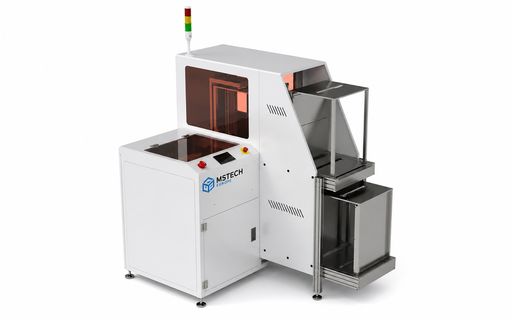

Classic-AMML-330

Multi Magazine (mm) loader, space save type; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 440x330; PCB Min. (mm): 50x50; Machine Size (mm): 1210x1700x1650; Magazine (mm): 460x400x563

Application:

The Magazine Loader is designed for loading of PCBs. The unit loads your production line automatically by pushing PCB’s out of a magazine onto the conveyor of the down-stream machine. Connect with SMT and AI productions line, safety design ensure not to break any PCB when it is pushed and thus reduce defect rate. With high accuracy, automatic counting, fault alram functions, it is required for a full range of automatic equipment.

This multi magazine loader is designed with ""L type ""to save the SMT production line length without impacting the production throughout capacity.



1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
3.Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.

Features

• Magazine capacity: Top 1+ Down 2, middle 1, total 4 magazines.

• Full CE regulations safety cover

• Selectable pitch 10mm up to 80mm

• Auto/Manual run modes

• Diameter 3.8mm edge Flat ESD belt

• Component clearance: top 50mm+ bottom 30mm

• Power: AC220V/110V, 50/60 HZ, 1 phase

• Air Pressure: 5kgf/cm2

• PCB Convey Direction: L-R (Or R-L)

• Front rail fixed (or rear rail fixed)

• Conveyor height:900+/-50mm (standard height for SMT application)

• For AI application, please specify the height requirements

MSTECH Europe
Classic-AMML-390

Multi Magazine (mm) loader, space save type; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 530x390; PCB Min. (mm): 50x50; Machine Size (mm): 1390x1700x1650; Magazine (mm): 535x460x570

Application:

The Magazine Loader is designed for loading of PCBs. The unit loads your production line automatically by pushing PCB’s out of a magazine onto the conveyor of the down-stream machine. Connect with SMT and AI productions line, safety design ensure not to break any PCB when it is pushed and thus reduce defect rate. With high accuracy, automatic counting, fault alram functions, it is required for a full range of automatic equipment.

This multi magazine loader is designed with ""L type ""to save the SMT production line length without impacting the production throughout capacity.



1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
3.Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.

Features

• Magazine capacity: Top 1+ Down 2, middle 1, total 4 magazines.

• Full CE regulations safety cover

• Selectable pitch 10mm up to 80mm

• Auto/Manual run modes

• Diameter 3.8mm edge Flat ESD belt

• Component clearance: top 50mm+ bottom 30mm

• Power: AC220V/110V, 50/60 HZ, 1 phase

• Air Pressure: 5kgf/cm2

• PCB Convey Direction: L-R (Or R-L)

• Front rail fixed (or rear rail fixed)

• Conveyor height:900+/-50mm (standard height for SMT application)

• For AI application, please specify the height requirements

MSTECH Europe
Classic-MMUL-330
Multi Magazine (mm) unloader; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 440x330; PCB Min. (mm): 50x50; Machine Size (mm): 1580x830x1650; Magazine (mm): 460x400x563

Application:

The Automatic Unloader is designed for unloading of PCBs, an arriving PCB is taken up by the attached conveyor and then pushed into the magazine by a specially designed pusher. The magazine indexes to the next position and is ready for the following unloading cycle. Connect with SMT and AI production line, safety design ensures not to break any PCB when it is pushed and thus reduce defect rate. Agility operation with high accuracy, automatic counting, fault alarm functions, it is required for a full range of automatic equipment.

1.Used in SMT line end, collecting the boards into the magazines from upstream machine.
2.Standard magazine handling capacity : 4 PCS of magazines ( Optional: 5 PCS)

Features

Magazine capacity: Top 1+ Middle 1+Down 2, total 4 magazines. (Optional: 5 magazines)

Full CE regulations safety cover

Selectable pitch 10mm up to 80mm

Auto/Manual run modes

Diameter 3.8mm edge Flat ESD belt

Component clearance: top 50mm, bottom 30mm

Power: AC220V/110V, 50/60 HZ, 1 phase

Air Pressure: 5kgf/cm2

PCB Convey Direction: L-R ( Or R-L)

Front rail fixed ( or rear rail fixed)

Conveyor height:900+/-50mm (Standard height for SMT application)

For AI application, please specify the height requirements

MSTECH Europe

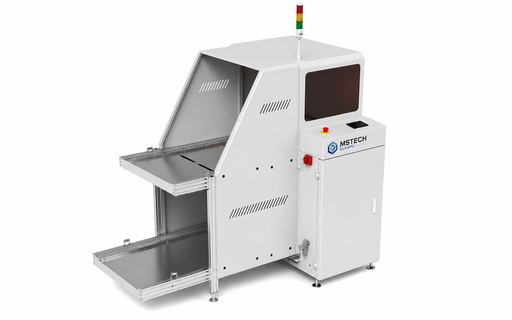

Classic-MMUL-390
Multi Magazine (mm) unloader; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 530x390; PCB Min. (mm): 50x50; Machine Size (mm): 2300x950x1650; Magazine (mm): 535x460x570

Application:

The Automatic Unloader is designed for unloading of PCBs, an arriving PCB is taken up by the attached conveyor and then pushed into the magazine by a specially designed pusher. The magazine indexes to the next position and is ready for the following unloading cycle. Connect with SMT and AI production line, safety design ensures not to break any PCB when it is pushed and thus reduce defect rate. Agility operation with high accuracy, automatic counting, fault alarm functions, it is required for a full range of automatic equipment.

1.Used in SMT line end, collecting the boards into the magazines from upstream machine.
2.Standard magazine handling capacity : 4 PCS of magazines ( Optional: 5 PCS)

Features

Magazine capacity: Top 1+ Middle 1+Down 2, total 4 magazines. (Optional: 5 magazines)

Full CE regulations safety cover

Selectable pitch 10mm up to 80mm

Auto/Manual run modes

Diameter 3.8mm edge Flat ESD belt

Component clearance: top 50mm, bottom 30mm

Power: AC220V/110V, 50/60 HZ, 1 phase

Air Pressure: 5kgf/cm2

PCB Convey Direction: L-R ( Or R-L)

Front rail fixed ( or rear rail fixed)

Conveyor height:900+/-50mm (Standard height for SMT application)

For AI application, please specify the height requirements

MSTECH Europe
Classic-MMUL-460
Multi Magazine (mm) unloader; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 535x460; PCB Min. (mm): 50x50; Machine Size (mm): 2300x1020x1650; Magazine (mm): 535x530x570

Application:

The Automatic Unloader is designed for unloading of PCBs, an arriving PCB is taken up by the attached conveyor and then pushed into the magazine by a specially designed pusher. The magazine indexes to the next position and is ready for the following unloading cycle. Connect with SMT and AI production line, safety design ensures not to break any PCB when it is pushed and thus reduce defect rate. Agility operation with high accuracy, automatic counting, fault alarm functions, it is required for a full range of automatic equipment.

1.Used in SMT line end, collecting the boards into the magazines from upstream machine.
2.Standard magazine handling capacity : 4 PCS of magazines ( Optional: 5 PCS)

Features

Magazine capacity: Top 1+ Middle 1+Down 2, total 4 magazines. (Optional: 5 magazines)

Full CE regulations safety cover

Selectable pitch 10mm up to 80mm

Auto/Manual run modes

Diameter 3.8mm edge Flat ESD belt

Component clearance: top 50mm, bottom 30mm

Power: AC220V/110V, 50/60 HZ, 1 phase

Air Pressure: 5kgf/cm2

PCB Convey Direction: L-R ( Or R-L)

Front rail fixed ( or rear rail fixed)

Conveyor height:900+/-50mm (Standard height for SMT application)

For AI application, please specify the height requirements

MSTECH Europe
Classic-MMUL-Flex
Available for 355x320x563 / 460x400x563 / 535x460x570 / 535x530x570 (mm); Motorized width adjustment; NG/OK reject functions; PCB Max(mm): All sizes; PCB Min. (mm): 50x50; Magazine (mm): 355x320x563 / 460x400x563 / 535x460x570 / 535x530x570 (mm)

Application:

The Automatic Unloader is designed for unloading of PCBs, an arriving PCB is taken up by the attached conveyor and then pushed into the magazine by a specially designed pusher. The magazine indexes to the next position and is ready for the following unloading cycle. Connect with SMT and AI production line, safety design ensures not to break any PCB when it is pushed and thus reduce defect rate. Agility operation with high accuracy, automatic counting, fault alarm functions, it is required for a full range of automatic equipment.

1.Used in SMT line end, collecting the boards into the magazines from upstream machine.
2.Standard magazine handling capacity : 4 PCS of magazines ( Optional: 5 PCS)

Features

Magazine capacity: Top 1+ Middle 1+Down 2, total 4 magazines. (Optional: 5 magazines)

Full CE regulations safety cover

Selectable pitch 10mm up to 80mm

Auto/Manual run modes

Diameter 3.8mm edge Flat ESD belt

Component clearance: top 50mm, bottom 30mm

Power: AC220V/110V, 50/60 HZ, 1 phase

Air Pressure: 5kgf/cm2

PCB Convey Direction: L-R ( Or R-L)

Front rail fixed ( or rear rail fixed)

Conveyor height:900+/-50mm (Standard height for SMT application)

For AI application, please specify the height requirements
